Product Description

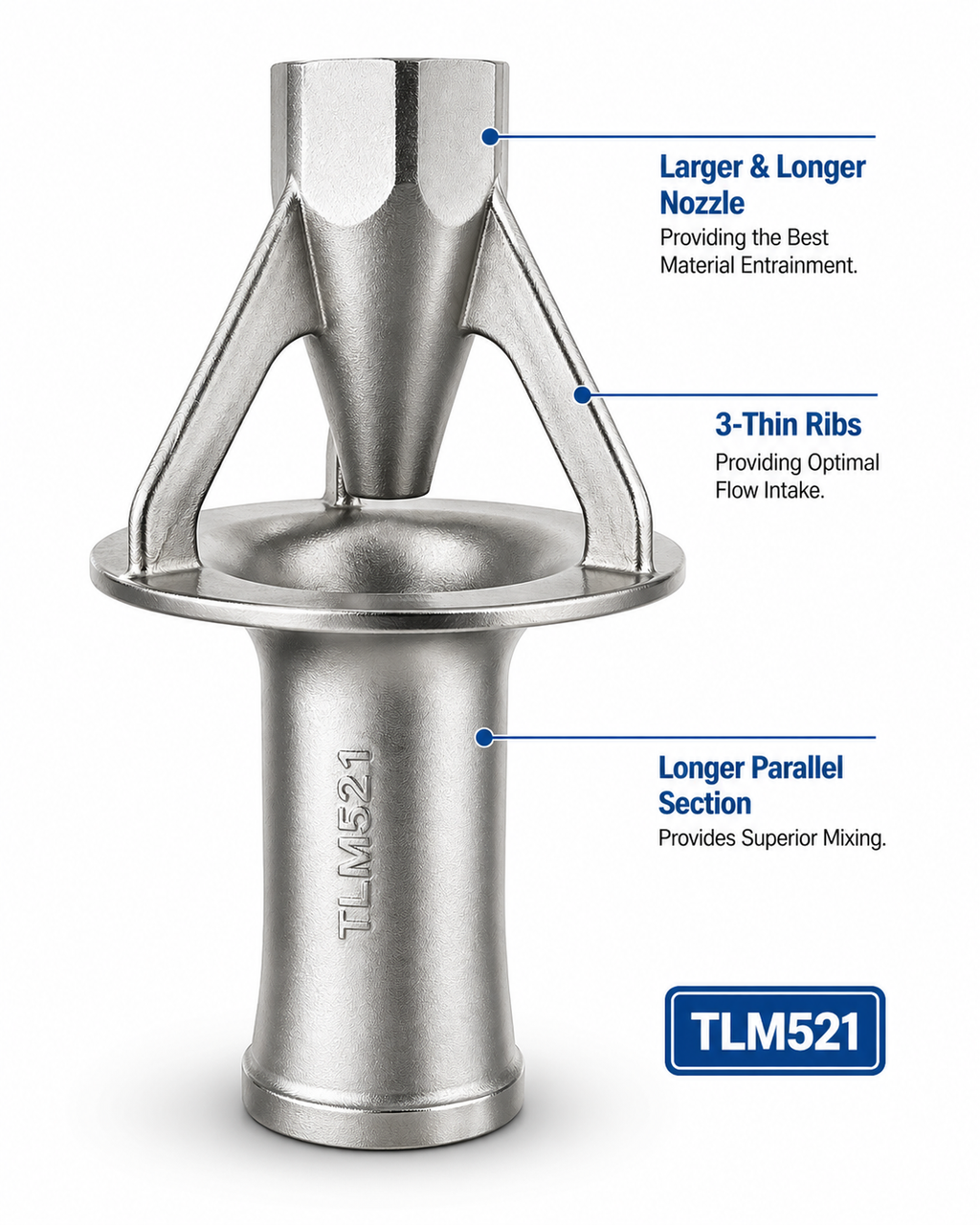

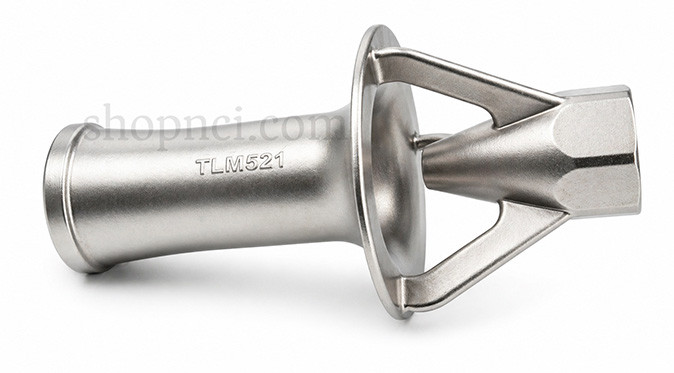

Size: 3" Female NPT in Cast Carbon Steel
Electroless Zinc Plating is now a standard on Carbon Steel units. This results in improved corrosion inhibition, improved wearability and reduces flow friction.
| Size IPS | Pressure Difference, PSI | ||||||||||||
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | ||
| Motive Flow (GPM) | 142 | 201 | 246 | 283 | 317 | 347 | 375 | 401 | 426 | 449 | 491 | 531 | |
| 3" FNPT | Outlet Flow (GPM) | 708 | 1,003 | 1,228 | 1,417 | 1,585 | 1,737 | 1,764 | 1,790 | 1,815 | 1,836 | 1,880 | 1,920 |
| Max. Plume Length (FT) | 16 | 34 | 51 | 73 | 99 | 129 | 161 | 193 | 225 | 257 | 322 | 386 | |
