Product Description

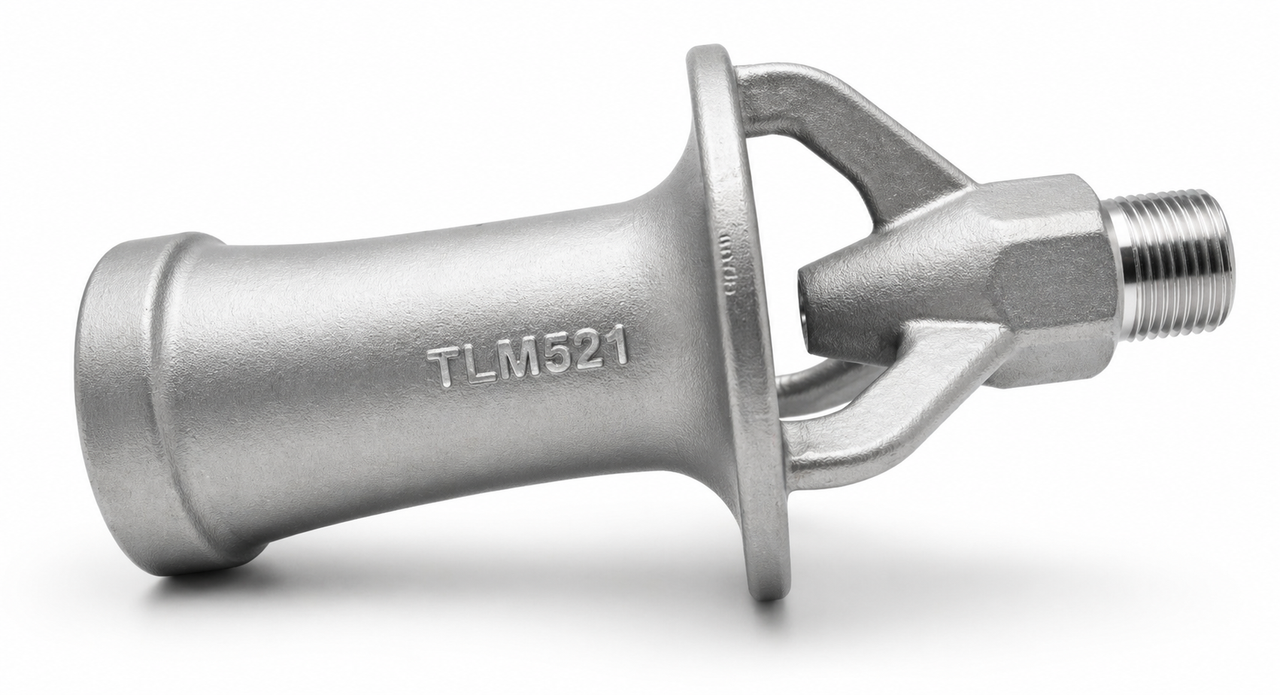

Size: 3/4" Male NPT in Cast Carbon Steel
Electroless Zinc Plating is now a standard on Carbon Steel units. This results in improved corrosion inhibition, improved wearability and reduces flow friction.
| Size IPS | Pressure Difference, PSI | ||||||||||||
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | ||
| 3/4" MNPT | Motive Flow (GPM) | 15.4 | 21.8 | 26.7 | 30.8 | 34.5 | 37.8 | 40.8 | 43.6 | 46.3 | 48.8 | 53.4 | 57.7 |
| Outlet Flow (GPM) | 77 | 109 | 134 | 154 | 172 | 189 | 192 | 195 | 197 | 200 | 204 | 209 | |
| Max. Plume Length (FT) | 5 | 11 | 17 | 24 | 33 | 42 | 53 | 64 | 74 | 85 | 106 | 127 | |
