Product Description

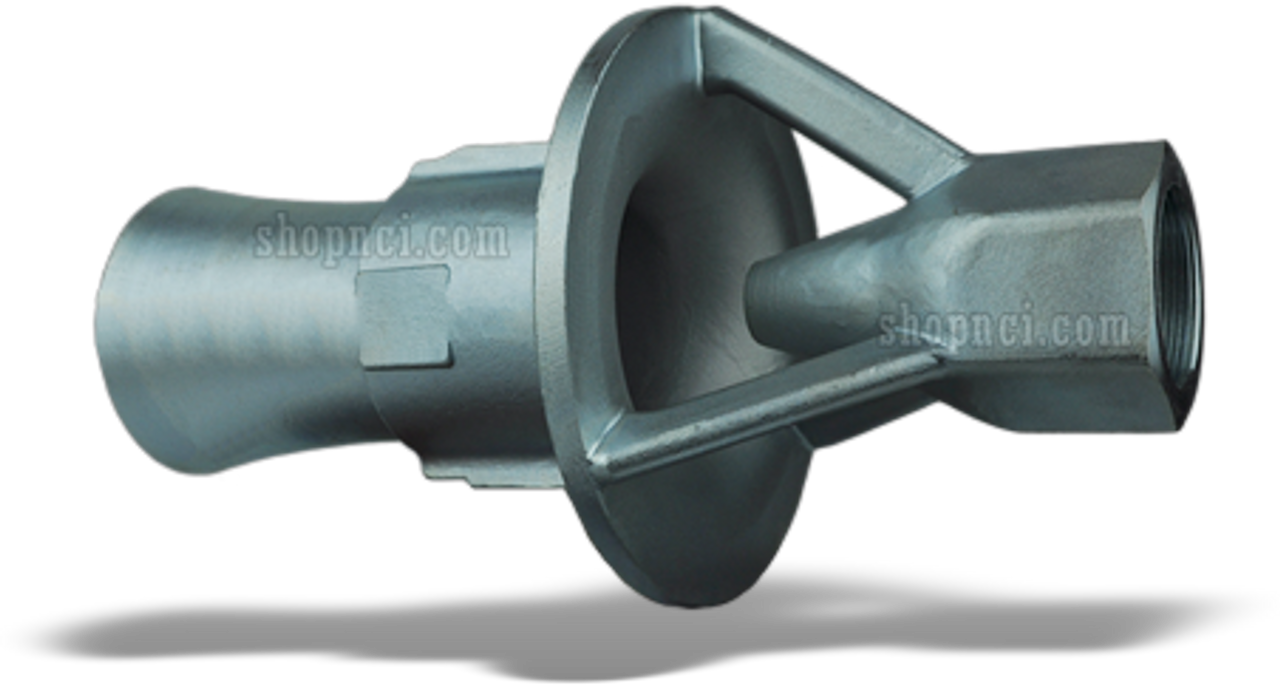

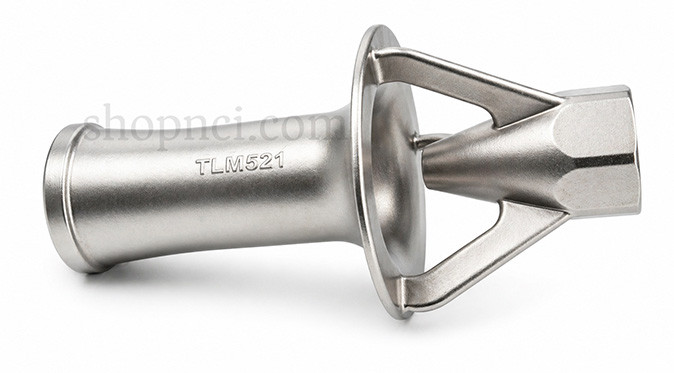

Size: 2" Female NPT in Cast Carbon Steel
Electroless Zinc Plating is now a standard on Carbon Steel units. This results in improved corrosion inhibition, improved wearability and reduces flow friction.
| Size IPS | Pressure Difference, PSI | ||||||||||||
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | ||
| 2" FNPT | Motive Flow (GPM) | 61.6 | 87.2 | 107 | 123 | 138 | 151 | 163 | 174 | 185 | 195 | 214 | 231 |
| Outlet Flow (GPM) | 308 | 436 | 534 | 616 | 689 | 755 | 767 | 778 | 789 | 799 | 818 | 835 | |
| Max. Plume Length (FT) | 11 | 23 | 34 | 48 | 65 | 85 | 106 | 12 | 148 | 170 | 212 | 255 | |
