Model ML

Model ML 1/2" BRZ

1/2" Model ML in Bronze Motive Connection: 3/8" MNPTSuction Connection: 1/2" MNPTDischarge Connection: 1/2" MNPT   Performance Details: Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -27ft...

Model ML 3/4" BRZ

3/4" Model ML in Bronze Motive Connection: 1/2" MNPTSuction Connection: 3/4" MNPTDischarge Connection: 3/4" MNPT Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft.

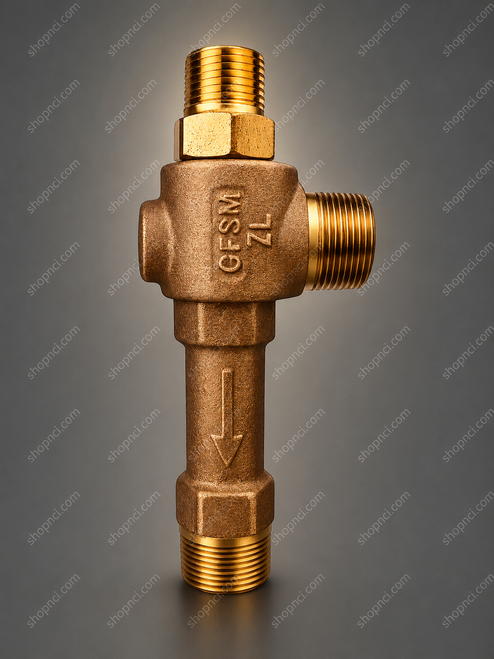

Model ML 1" BRZ

1" Model ML in Bronze Motive Connection: 3/4" MNPTSuction Connection: 1" MNPTDischarge Connection: 1" MNPT Performance: Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -27ft. Maximum...

Model ML 1-1/4" BRZ

1-1/4" Model ML in Bronze Motive Connection (nozzle): 1" MNPT Suction Connection: 1-1/4" MNPT Discharge Connection: 1-1/4" MNPT Performance: Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 30-35% Maximum Suction Lift:...

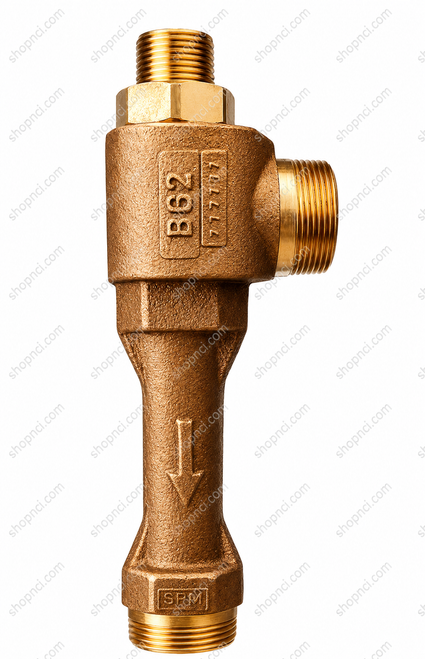

Model ML 1-1/2" BRZ

1-1/2" Model ML in Bronze Motive Connection: 1-1/4" MNPTSuction Connection: 1-1/2" MNPTDischarge Connection: 1-1/2" MNPT Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -27ft. Maximum Required...

Model ML 2" BRZ

2" Model ML in Bronze Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft.

Model ML 2-1/2" BRZ

2-1/2" Model ML in Bronze Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft.

Model ML 3" BRZ

3" Model ML in Bronze Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft.
