Product Description

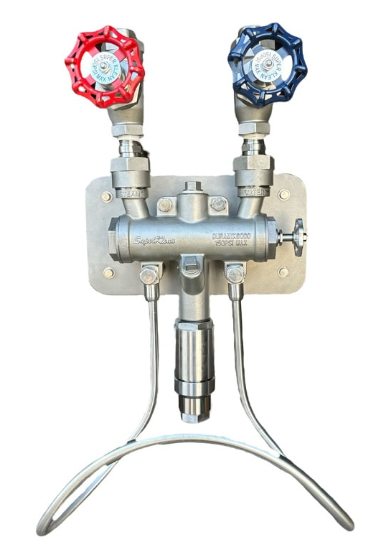

THERMOSTATIC STAINLESS STEEL STEAM & COLD WATER MIXING UNIT - DURAMIX MODEL 8000T-GM-S
- Maximum Working Steam Pressure (Saturated Only): 30-150 PSI
- Working Water Pressure: 30-150 PSI
- Maximum Temperature: 200° F (93° C)
- Maximum Pressure: 150 PSI
- Weight: 20 lbs.
Includes:
- Stainless Steel construction
- 3/4" NPT inlet / outlet
- 2 Outlet connections
- 2 Stainless steel globe valves
- 2 Stainless steel check valves
- Stainless steel hose rack with stainless end adapters
- Aluminum mounting plate, bolts & washers
- Safety First – Thermostatic Safety Mechanism: This unit is based on the 8000 model, with an additional thermostatic temperature-limiting feature for added safety. The unit’s advanced thermostatic shutoff feature automatically cuts off water flow if the temperature exceeds the pre-set limit of 185°F (85°C), preventing live steam from passing through the unit.
Plant Safety Managers worldwide rate SuperKlean’s DuraMix 8000 the safest steam unit available! - Dual Output – Features a secondary outlet for additional hose connections or piping to other areas.
- Convenience – Comes with everything shown except the optional adjustable angle temperature gauge.
- Simple Maintenance – Only takes 15 minutes to complete preventive maintenance.
- The thermostatic temperature-limiting function is not available for the Secondary Outlet.
- 1 year warranty
SuperKlean customers have been asking over the past few years for a thermostatic version of our worldwide favorite DuraMix 8000 Hose Station. Two years ago, SuperKlean engineers added a Ball Valve version of our DuraMix 8000 “Globe-Valve-based” Hose Stations. This rounded out our wide line of Hose Station solutions. But still, some customers said a small percentage of (“Engineering Spec’s”) they receive require a thermostatic mixing valve with limiting capability so the steam hose station would automatically cut off at water temperatures above 185 degrees Fahrenheit.
So, in 2024 SuperKlean announced and started shipping a new line of thermostatic temperature-limiting safety hose stations called the DuraMix 8000T Series. These 8 new models feature the same high-quality construction and performance as our DuraMix 8000 family that has been shipping for decades, plus the additional capability of automatic hose station shutoff in the case that the hose station’s hot water output exceeds 185 degrees. The DuraMix 8000T functions as a highly reliable temperature control mixing valve, offering precision and safety for industrial washdown applications.
The DuraMix 8000T is ideal for customers who need an industrial thermostatic mixing valve solution that integrates seamlessly into their sanitation or process water systems. You can be assured that this unit also works with SuperKlean’s entire line of hot water washdown products including our complete line of industrial hot water nozzles, perfectly engineered adapters and fittings, as well as our extensive line of hot water washdown hoses.
SuperKlean industrial thermostatic mixing valve hose stations are available in either ball valve or globe valve configurations, as well as bronze or stainless steel.
